Fume Hood

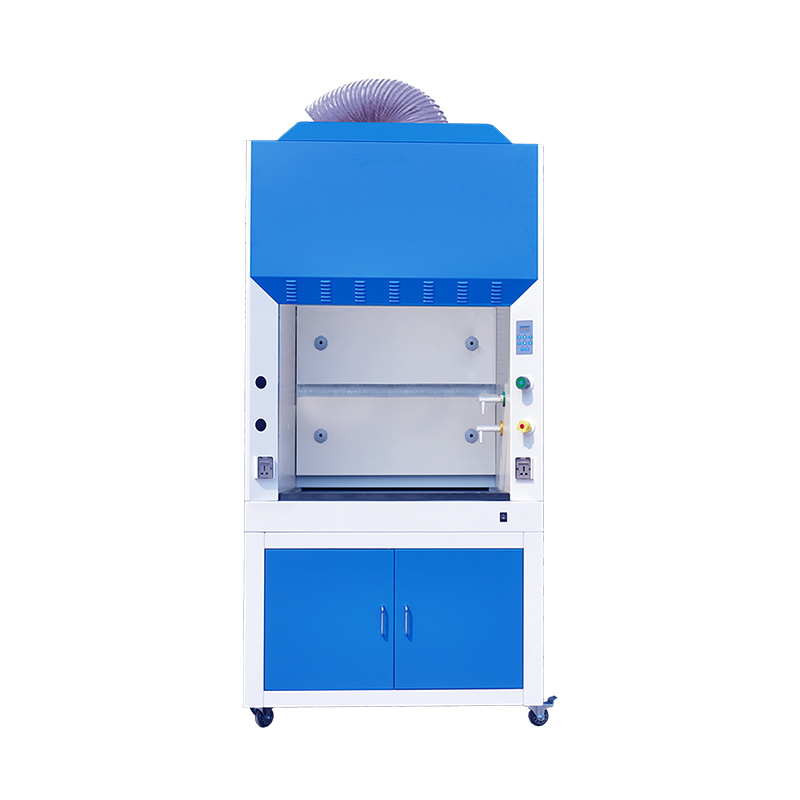

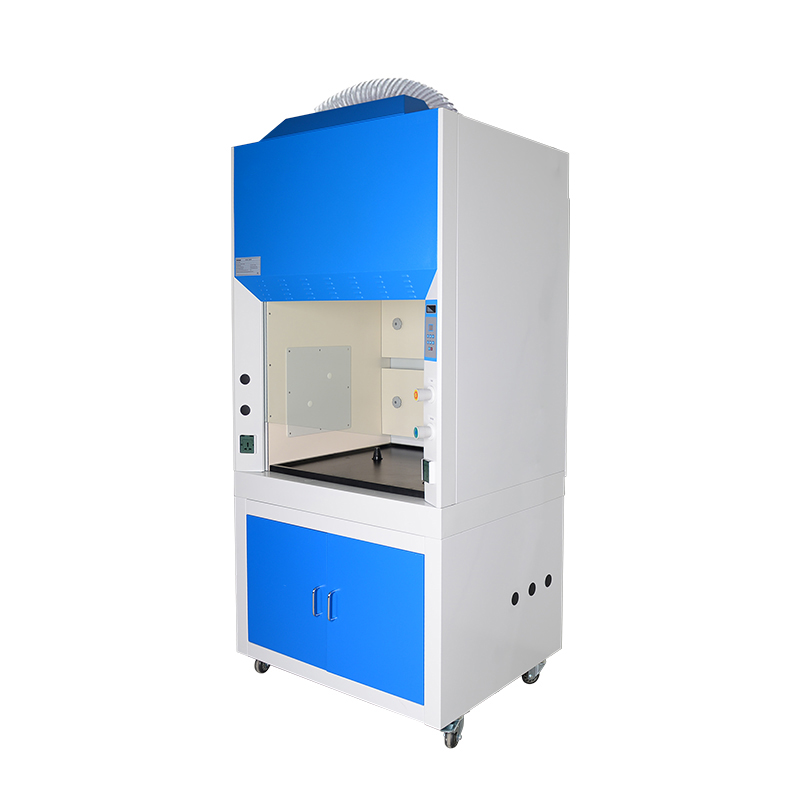

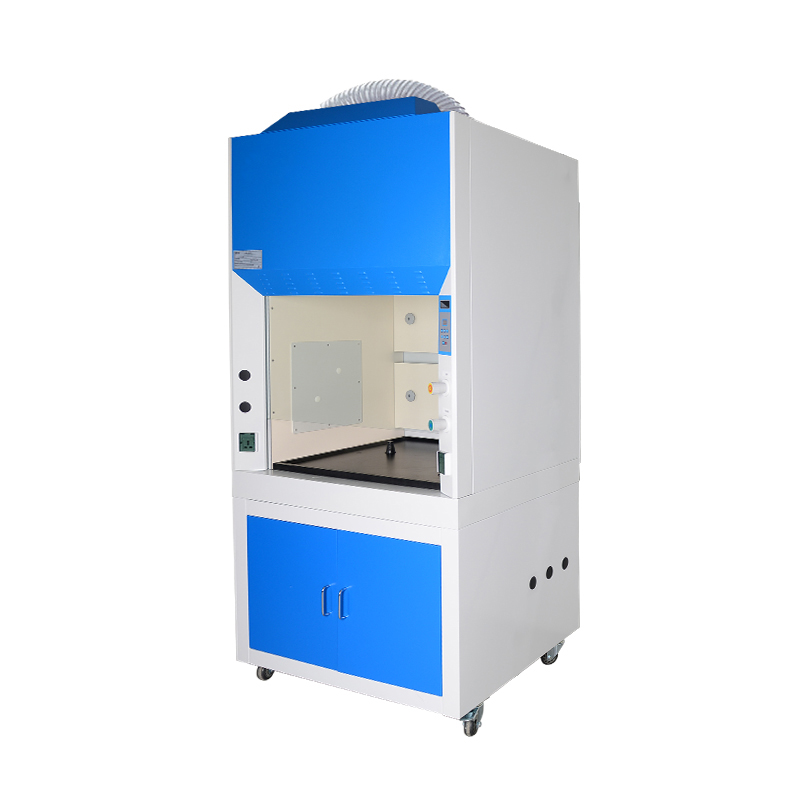

FH1000(A) FH1200(A) FH1500(A) FH1800(A) Air Flow Sensor Ducted Fume Hood

Model:FH1000(A) FH1200(A) FH1500(A) FH1800(A)
Type:Ducted
Packing size:1190*890*1340mm
Gross weight:150kg
Product description: FH1000(A) FH1200(A) FH1500(A) FH1800(A) Air Flow Sensor Ducted Fume Hood
INQUIRY

Download：FH1000(A) FH1200(A) FH1500(A) FH1800(A) Air Flow Sensor Ducted Fume Hood

Advantage:

1. UV lamp for sterilization.
2. Resistant to weak acid and alkali.
3. Adjustable air speed: 9 levels
4. Motorized front window, height adjustable.
5. Microprocessor control system, LED display.
6. With memory function in case of power-failure

Stand Accessories:

UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet
Total load of 2 waterproof sockets: 500W
4-meter PVC exhaust duct, pipe strap

Optional Accessory: Active carbon filter

Model			FH1000(A)	FH1200(A)	FH1500(A)	FH1800(A)
External Size (WDH)			10408002200mm	12408002200mm	15408002200mm	18408002200mm
Internal Size (WDH)			820670730mm	1020670730mm	1320670730mm	1620670730mm
Work Surface Height			850mm
Max Opening			520mm
Air Velocity			0.3~0.8m/s
Noise			≤68dB
Exhaust Duct			PVC, Standard length: 4 meters.
			Φ300mm
LED Lamp			8W*1	12W*1	16W*1	16W*1
UV Lamp			Emission of 253.7 nanometers for most efficient decontamination
Blower			Built-in centrifugal blower; Speed adjustable.
Front Window			5mm toughened glass; Motorized; Height adjustable.
Power Supply			AC220±10%, 50/60Hz; 110V±10%, 60Hz
Consumption			400W	400W	500W	500W
Material	Exterior		Cold-rolled steel with anti-bacteria powder coating.
	Interior		Compact laminate board with good acid and alkali resistance function
	Work Table		Chemical resistant phenolic resin
Standard Accessory			UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet
			Total load of 2 waterproof sockets: 500W
			4.3 meters PVC exhaust duct, pipe strap*2
Optional Accessory			Active carbon filter
Gross Weight			286kg	317kg	350kg	400kg
Package		Main Body	11909901690 mm	13909901690 mm	16909901690mm	19909901690mm
		Base Cabinet	1190990900mm	1390990900mm	1690990900mm	1990990900mm
